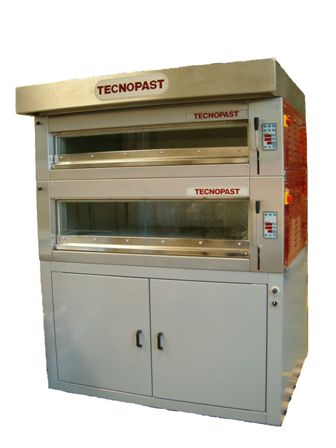

MITO 21-22-41-42-61-62
Modular Electric Ovens

The electric oven MITO is suitable for pastry and pizza. Its modular design allows to add one or more deckswith completely independent baking control

  • Small in size, it can be placed even in the narrowest and hidden places
  • It is available in two versions according to the internal height of the baking chamber
  • Each module has a separate adjustment of the temperature of top and bottom baking sufaces, and steam exhaust knob. It can contain two, four or six baking-trays of 60x40 cm.
  • Can be supplied with stand or prover. The prover is equipped with a thermostat for temperature setting.
  • Each deck can have steam injection

Optional
Refractory material floor

Supplied with all the electric and mechanical devices granting the operator maximum safety.



Manufactured in conformity with the regulations of 89/392 EEC Machines Directive.




TECHNICAL DATA

MITO21

MITO22 MITO41 MITO42 MITO61 MITO62

Sq. m

0.55
0.55
1.1
1.1
1.65
1.65
Dimensions mm (ext)
970x1140x420
970x1140x520
1590x1140x420
1590x1140x520
2200x1140x420
2200x1140x520
Dimensions mm (ext)
620x900x150
620x900x250
1240x900x150
1240x900x250
1860x900x150
1860x900x250
Trays per module (60x40)
2
2
4
4
6
6

Trays per module (64x80)

1
1
2
2
3
3
Power KW
6
6
9
9
13.5
13.5
rev Aug-05
