VAPOR

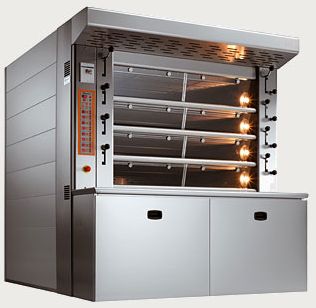

Steam Deck Ovens



Wide range of steam ovens with 2-3-4 chambers to meet the requirement of baking from 70 to up 280 kg/hour of bread

  • Designed and manufactured to assure high quality as well as reliability and long life
  • The heating system consists of "Mannesmann" sealed tubes containing hot water under pressure, tested at 800 atm
  • The steam units are placed lengthwise on the tubes and are easily accessible for maintace opeations
  • The combustion chamber is made of high resistance stainless steel
  • Cladding, front and doors made of 18/10 stainless steel
  • High insulation level on walls and doors with minimum heat loss and high operating economy
  • Digital indicator for chambers internal temperature
  • Automatic temperature control.

Optional equipment:
- Wooden furnace
- Computer control


Manufactured in conformity with the regulations of 89/392 EEC Machines Directive.

Supplied with all the electric and mechanical devices granting the operator maximum safety




TECHNICAL DATA
VAPOR42D VAPOR23D VAPOR33A VAPOR33C VAPOR33D VAPOR33E

Doors n°
4
2
3
3
3
3
Chambers n°
2
3
3
3
3
3
Baking surf. sq. m.
12.4
9.3
9.5
12.1
13.9
14.8
Int. Dimensions mm
248x249x21
124x249x21
186x170x21
186x217x21
186x249x21
186x265x21

Ext Dimensions mm

323x384x270
200x384x270
262x305x270
262x352x270
262x384x270
262x401x270
Diesel Oil Consumption Kg/h
6.6
4.8
4.9
6.2
7.2
7.6
Natural Gas Consumption Kg/h
7.3
5.5
5.6
7.1
8.2
8.7
Power KW
1
1
1
1
1
1


VAPOR43B VAPOR43D VAPOR43F VAPOR24A VAPOR24C

Doors n°
4
4
4
2
2
Chambers n°
3
3
3
4
4
Baking surf. sq. m.
13.8
18.5
20.9
8.4
10.8
Int. Dimensions mm
248x186x21
248x249x21
248x281x21
124x170x21
124x217x21

Ext Dimensions mm

323x320x270
323x384x270
323x417x270
200x305x270
200x352x270
Diesel Oil Consumption Kg/h
7.1
9.5
10.8
4.3
5.6
Natural Gas Consumption Kg/h
8.1
10.9
12.3
4.9
6.3
Power KW
1
1
1
1
1


VAPOR34A VAPOR44B VAPOR34D VAPOR44C VAPOR44D VAPOR44F

Doors n°
3
4
4
4
4
4
Chambers n°
4
4
3
4
4
4
Baking surf. sq. m.
12.7
18.5
18.5
21.6
24.7
26.9
Int. Dimensions mm
186x170x21
248x286x21
186x249x21
248x217x21
248x249x21
248x281x21

Ext Dimensions mm

262x305x270
323x320x270
262x384x270
323x352x270
323x384x270
323x417x270
Diesel Oil Consumption Kg/h
6.5
9.5
9.5
11.1
12.7
14.4
Natural Gas Consumption Kg/h
7.4
10.8
10.8
12.7
14.5
16.4
Power KW
1
1
1
1
1
1
