VEGA13A-13B-14CA-14CB-16A-16B

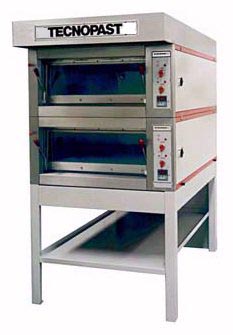

Modular Electric Ovens

Modular electric oven for confectioneries and pizzeria.

  • Possibility of using additional modules, as each oven is supplied with its own electric system and independent adjustment of ceiling/bed temperature and steam-release handle.
  • -The prover is supplied with thermostat for temperature adjusting.



Supplied with all the electric and mechanical devices granting the operator maximum safety


Manufactured in conformity with the regulations of 89/392 EEC Machines Directive.





TECHNICAL DATA


VEGA13A

VEGA13B

N° of trays

3
3
Trays dimensions cm
60x40
60x40
Module external dimension cm
155x96x43
155x96x50
Module internal dimension cm
125X70x18
125X70x25
Power per module KW
7,5
7,5



VEGA14CA

VEGA14CB

N° of trays

4
4
Trays dimensions cm
60x40
60x40
Module external dimension cm
112x156x43
112x156x50
Module internal dimension cm
82x130x18
82x130x25
Power per module KW
8,4
8,4



VEGA16A

VEGA16B

N° of trays

6
6
Trays dimensions cm
60x40
60x40
Module external dimension cm
155x156x43
155x156x50
Module internal dimension cm
125x130x18
125x130x25
Power per module KW
9
9
